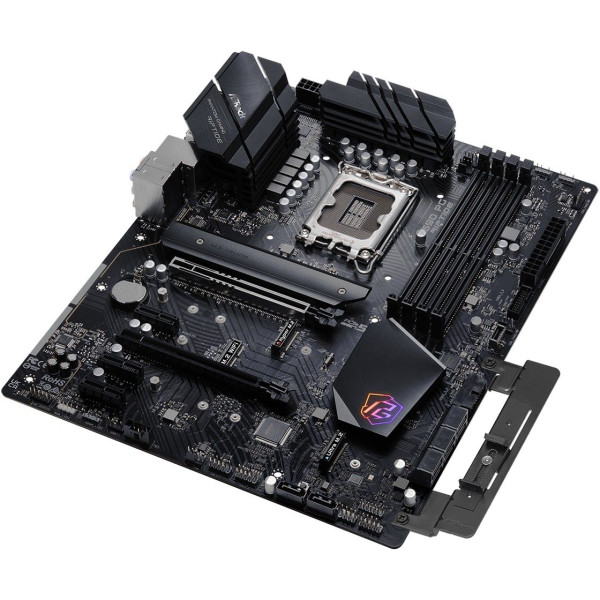

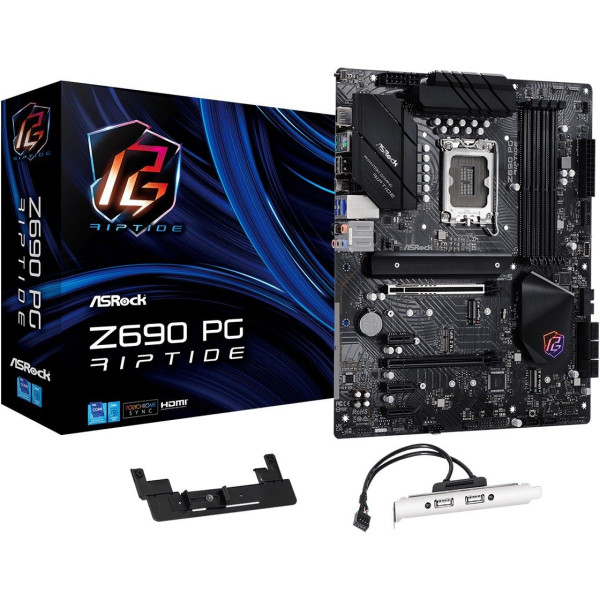

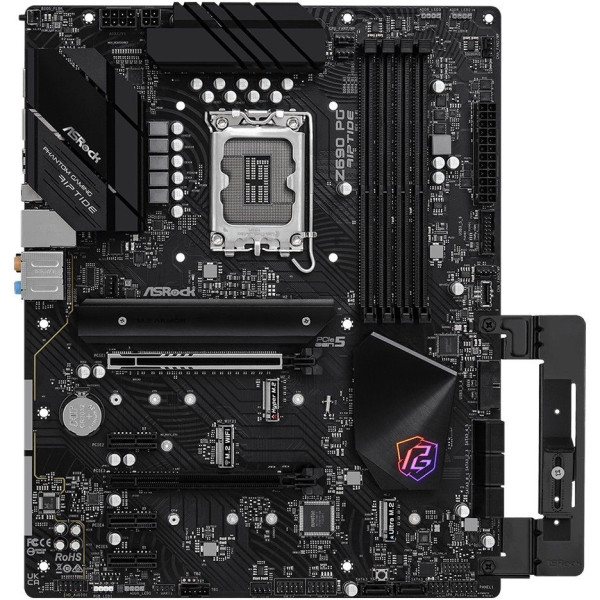

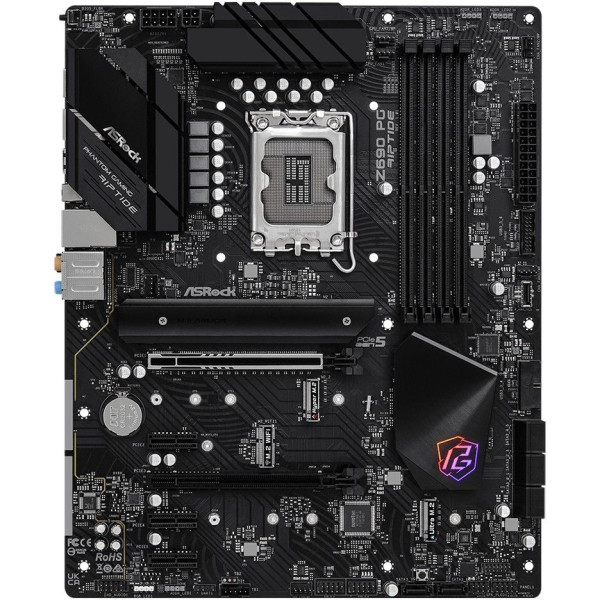

Matična ploča MOT 1700 ASRock Z690 PG RIPTIDE DDR4
Šifra: MP003
- Proizvod iz grupe: Matične ploče
- Proizvođač: ASRock
WebCena:
0.00 rsd.
Asrock Z690 PG Riptide Intel Z690 LGA 1700 ATX
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- PC ATX Intel Z690 Realtek ALC897 7.1 kanala
- DDR4-SDRAM 4 DIMM Without ECC RAM memorije maksimum: 128 GB
- Podrška za HDD & SSD M.2, SATA III RAID
- CrossFire
- BIOS: UEFI AMI 256 Mbit ACPI verzija: 6.0 Clear CMOS button
- 2.5 Gigabit Ethernet
| Procesor: |
Intel
|
| Procesorsko podnožje (Socket): |
LGA 1700
|
| Kompatibilni procesori: |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
|
| Maksimalan broj SMP procesora: | 1 |
| Podržana memorija:
|
DDR4 SDRAM
|
| Broj memorijskih slotova: |
4
|
| Tip memorije (RAM): |
DIMM
|
| Memory channels: |
Two-channel
|
| Podržana brzina memorije: |
4800MHz
|
| Maksimum RAM memorije: |
128GB
|
| Podržani interfejsi za skladištenje podataka: |
M.2, SATA III
|
| Podržanih diskova za skladištenje: |
HDD & SSD
|
| Podrška za grafiku: |
Parallel processing technology CrossFire
Maximum resolution 096x2160 pixels
HDCP
|
| Internal I/O ports: |
2 x USB 2.0 interfaces
2 x USB 3.2 Gen 1 (3.1 Gen 1) ports
8th SATA III connectors
Front panel audio connector
ATX power connector (24-pin)
CPU fan connector
4 x chassis fan connectors
TPM connector
12V power connection
|
| Rear I/O ports: |
2 x USB 2.0 ports
2 x USB 3.2 Gen 1 (3.1 Gen 1) Type A ports
2 x USB 3.2 Gen 2 (3.1 Gen 2) Type A ports
1 x USB 3.2 Gen 2x2 Type-C Number of ports
1 x Number of Ethernet LAN ports (RJ-45)
1 x PS/2 connections
1 x HDMI ports version 2.1
S/PDIF output
1 x Optical audio digital output
|
| Ethernet interface type: |
2.5 Gigabit Ethernet
|
| LAN controller: |
Killer E3100G
|
| Chipset matične ploče: |
Intel Z690
|
| Audio čip: |
Realtek ALC897
|
| Komponenta za: |
PC
|
| Podržava Windows operativne sisteme: |
Windows 10 x64, Windows 11 x64
|
| Slotovi za proširenja: |
3 x PCI Express x1 (Gen 3.x) connectors
2 x PCI Express x16 slots
3 x Number of M.2 (M) slots
|
| BIOS: |
UEFI AMI
ACPI version 6.0
|
